F-R41-S6-GCDP-0303

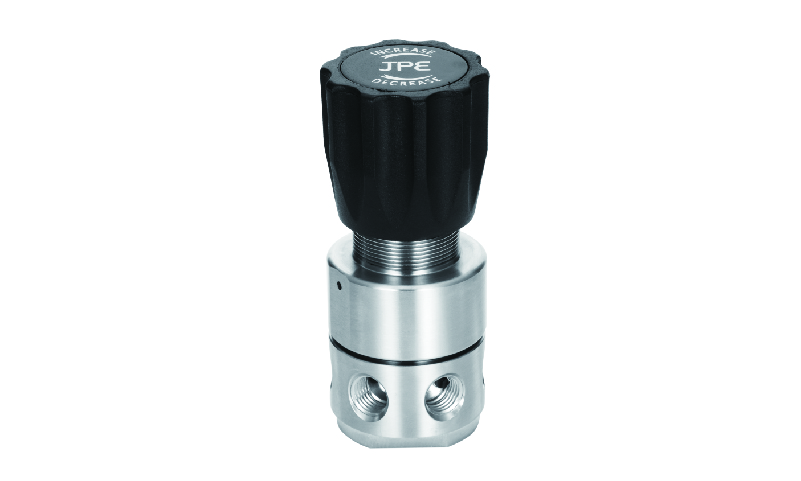

SS316L JPE R41 壓力減壓閥，兩進兩出，輸入壓力 6000 PSIG，輸出壓力 0-3000 PSIG，帶壓力表 (PSIG/BAR)，3/8" 內螺紋 NPT.
- The adjustable pressure relief valve is designed to automatically open for discharge when the system pressure rises to the set value.
- suitable for liquid and gas media
- Set pressure range: High pressure style 50–6000 psig; Low pressure style 10–300 psig
- Provides a variety of spring options for different pressure setting requirements.
- The valve comes with a locking device to ensure the set pressure and prevent accidental operation.
- The standard sealing element is made of fluororubber (FKM), with other materials available for selection.
- All products undergo nitrogen pressure regulation functional testing and sealing tests before leaving the factory.
Material
SS316L
Option
venting type
3/8"內螺紋NPT
Air intake type
3/8"內螺紋NPT
Pressure gauge
0-3000psig
Input pressure
6000 psig
Body hole position
二進二出
